Smart Thermal Energy Storage Systems for Maximum Efficiency

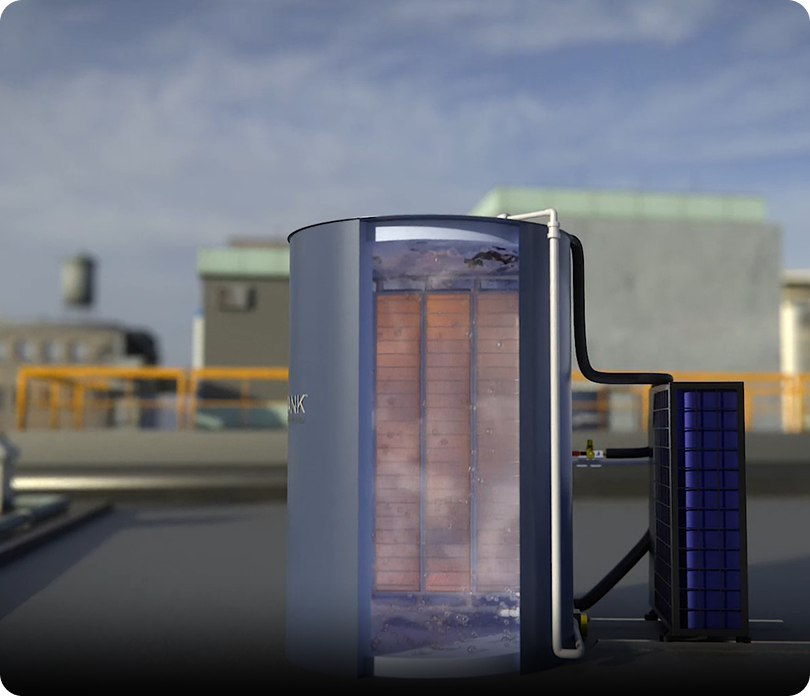

A modern thermal storage tank serves as the core of an advanced thermal energy storage system, functioning much like a battery for heat. Instead of heating water only at the moment it is needed, facilities can generate and store heat when energy is cheaper or more abundant. Power Panel’s design illustrates just how effective this technology can be. Their 350-gallon thermal battery provides R-18 insulation and loses less than four degrees Fahrenheit per day, enabling it to store up to 54 kWh of thermal energy and dispatch as much as 1,400 gallons of hot water per day when paired with a heat pump. Beyond performance, the construction of the thermal storage tank contributes to its longevity and sustainability. Made from corrosion-resistant EPP foam and advanced thermoplastics, the tank lasts two to three times longer than traditional steel tanks. The unpressurized water inside serves only as a working medium, which means it never mixes with the domestic water supply and avoids mineral buildup. All components are easily replaceable and fully recyclable.

• Preheats during off-peak rate windows
• Reduces peak electrical demand significantly
• Enhances heat pump performance and lifespan
• Ensures reliable hot-water delivery during peak periods

Thermal energy storage increases heat pump COP by allowing the heat pump to run during its most efficient hours and avoid short, inefficient heating cycles. Heat pumps already outperform traditional electric resistance systems, often producing three to four units of heat for each unit of electricity consumed. However, their actual efficiency depends on runtime behavior. A heat pump paired with a thermal battery can operate steadily, rather than cycling on and off, because it is storing heat instead of responding to sudden demand. By charging when outdoor temperatures are favorable or electricity prices are low, the heat pump maintains a higher average COP. PowerPanel’s modeling shows that integrating a heat pump with a thermal storage tank can reduce electricity consumption for water heating by up to 70% compared to resistance heating.

Solar PVT systems boost efficiency by supplying both electrical and high-density thermal energy that can be stored in the thermal battery for 24/7 use, maximizing solar utilization. Photovoltaic-thermal (PVT) systems take solar integration to the next level by generating both electricity and heat. PowerPanel’s PVT modules capture up to 84% of the sun’s energy and convert it into a mix of thermal output (about 12.7 kW per 20-panel array) and electrical output (around 2.7 kW). The thermal energy flows directly into the thermal storage tank, where it remains available long after daylight hours.

This pairing allows buildings to shift an even larger portion of their heating load away from utility power, providing a strong foundation for decarbonization and resilience. Since both the thermal storage tank and PVT system qualify for federal tax credits, the combined solution often achieves fast payback.

• Hotels & Resorts: Strong morning peaks and high occupancy
• Multifamily Housing: Predictable daily usage cycles
• Laundromats & Food Processing: Long-duration hot-water requirements
• Agriculture: Cleaning, heating, and process loads
• Off-Grid or Generator-Dependent Sites: Lower fuel consumption and runtime

Case studies show that hot water can represent 20–30% of total electrical usage in hospitality, making a thermal battery among the most impactful upgrades available.
